6374 DIY Efoil Assist Kit Boost Surf Kit

6374 DIY Efoil Assist Kit Boost Surf Kit

Regular price $423.90 USD
Regular price Sale price $423.90 USD
Sale Sold out
Shipping calculated at checkout.
Option

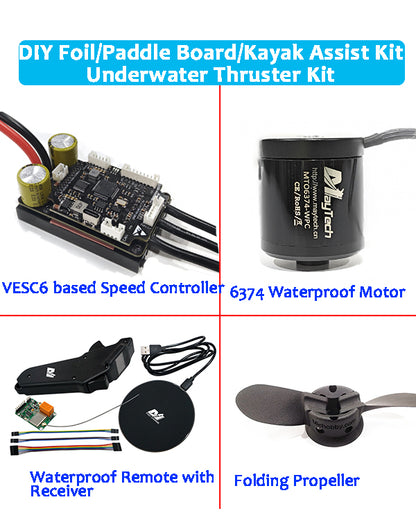

Application: Foil Kayak SUP Assist, Foil Boost, Fishing Kayak, etc.

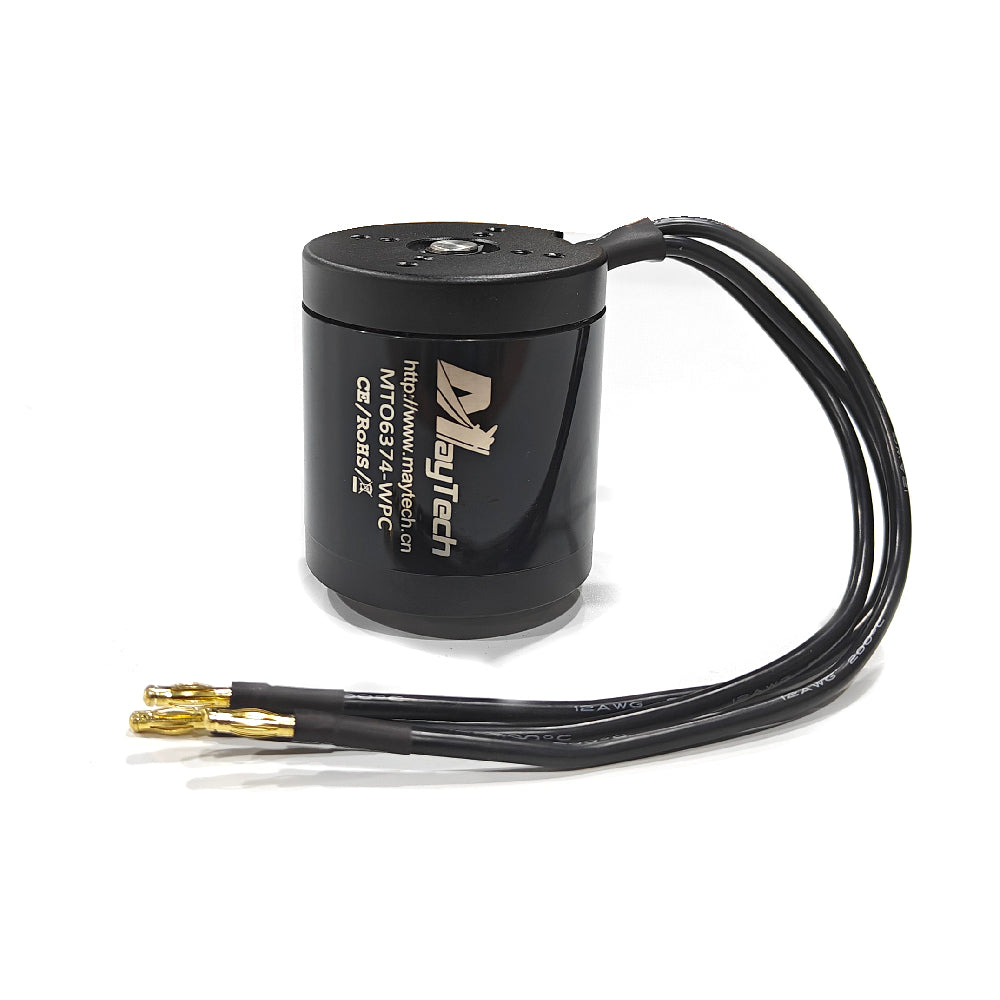

  • I. RCLEAD Waterproof 6374 Motor:

KV:150
Input Voltage: 3-10S Lipo (12.6V-42.2V)
Idle Current: 0.8A
Max Output Watt: 3550W
Max Current: 65A
Shaft: φ8mm, No Output Shaft

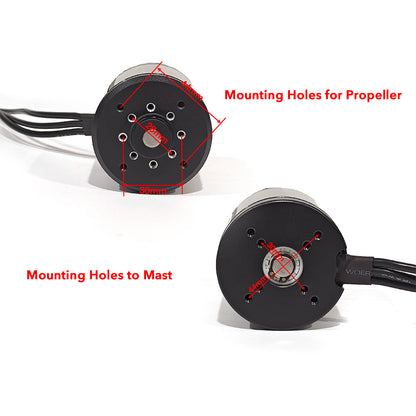

Mounting Hole Pattern: 28mm, 30mm, 44mm Hole distance
Mounting Hole Diameter: M4
Bearing: Ceramic bearing, better waterproof
Motor phase wire length: 1m

Advanced waterproof technology:

Rotor magnets with anti-oxidation and anti-rust treatment;
Stator with insulation paint;
Coil Copper wires with transparent insulating varnish;
Wataerproof ceramic bearing.

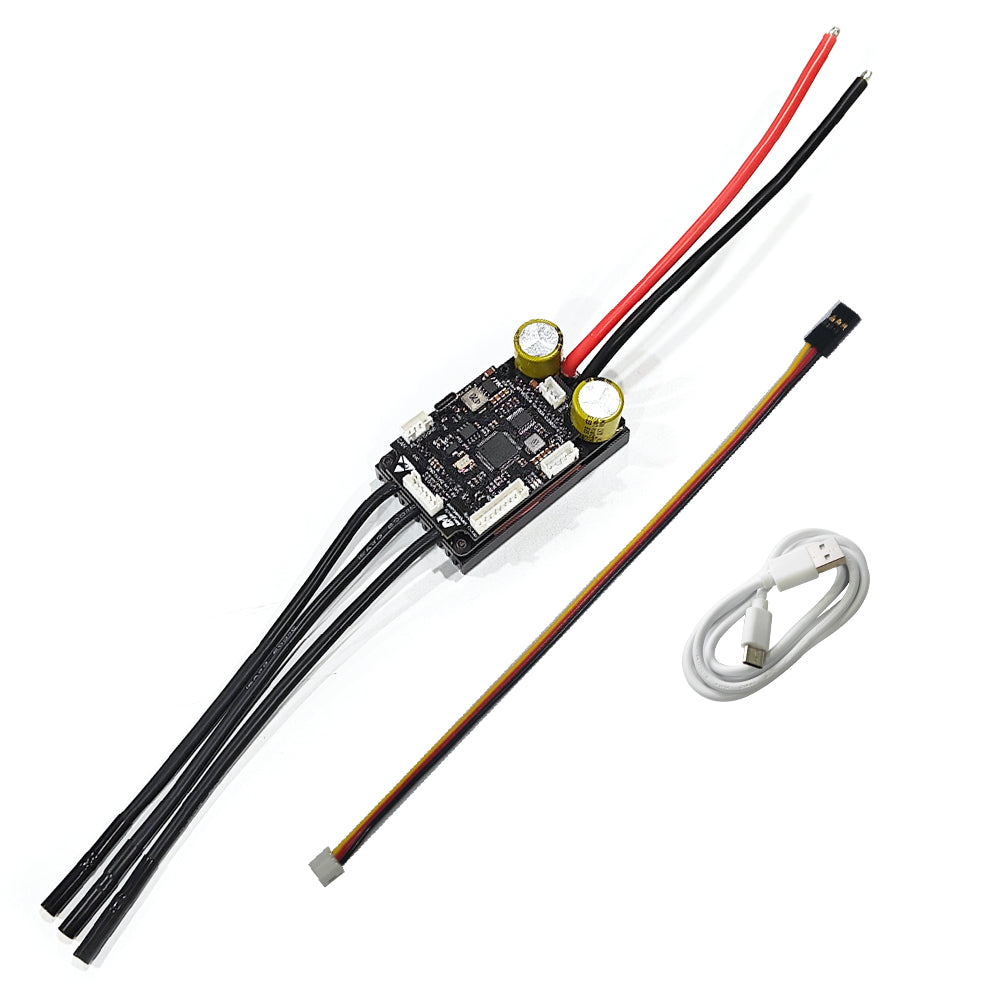

  • II. RCLEAD 100A VESC6 based Controller

Current: 100A
Input Voltage: 3-12S Lipo (12.6V-50V)
Feature: VESC_TOOL Compatible
Hardware: VESC6.0
Firmware: Updatable
BEC: 5V
With Cooling fin

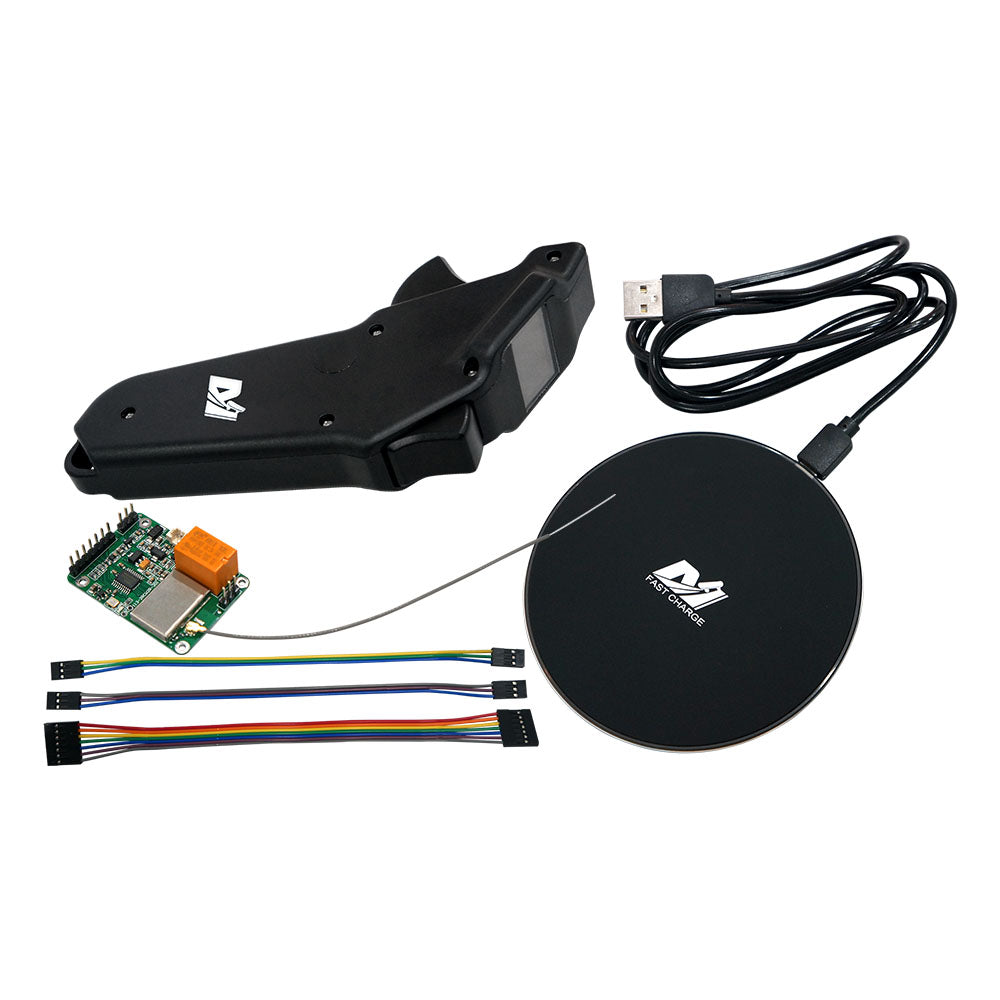

  • III. RCLEAD 2.4GHZ Waterproof Remote with Receiver

PCB and Screen Waterproof Rank: IP67
Input Voltage: Max 75V
Signal for ESC: PWM (PPM) and UART-With TX and RX port to connect VESC controllers
Double Source Power Supply: Accept 5V power by ESC built in BEC or extra 5V power
Control Pump: Yes (Relay Switch) on receiver
Control Light: Yes (Transistor Switch)
Cruise Control Funtion: With in Esurf Mode
AccessoriesL Charging Pad, Receiver, 3pcs Dupont Cables.
Display Screen: Remote & Battery Voltage, Throttle Percentage, Signal Strength, RPM;
When work with VESC, also display Current; Temp, Volt, Speed&Distance(only for esk8 mode) or RPM (for esurf mode).

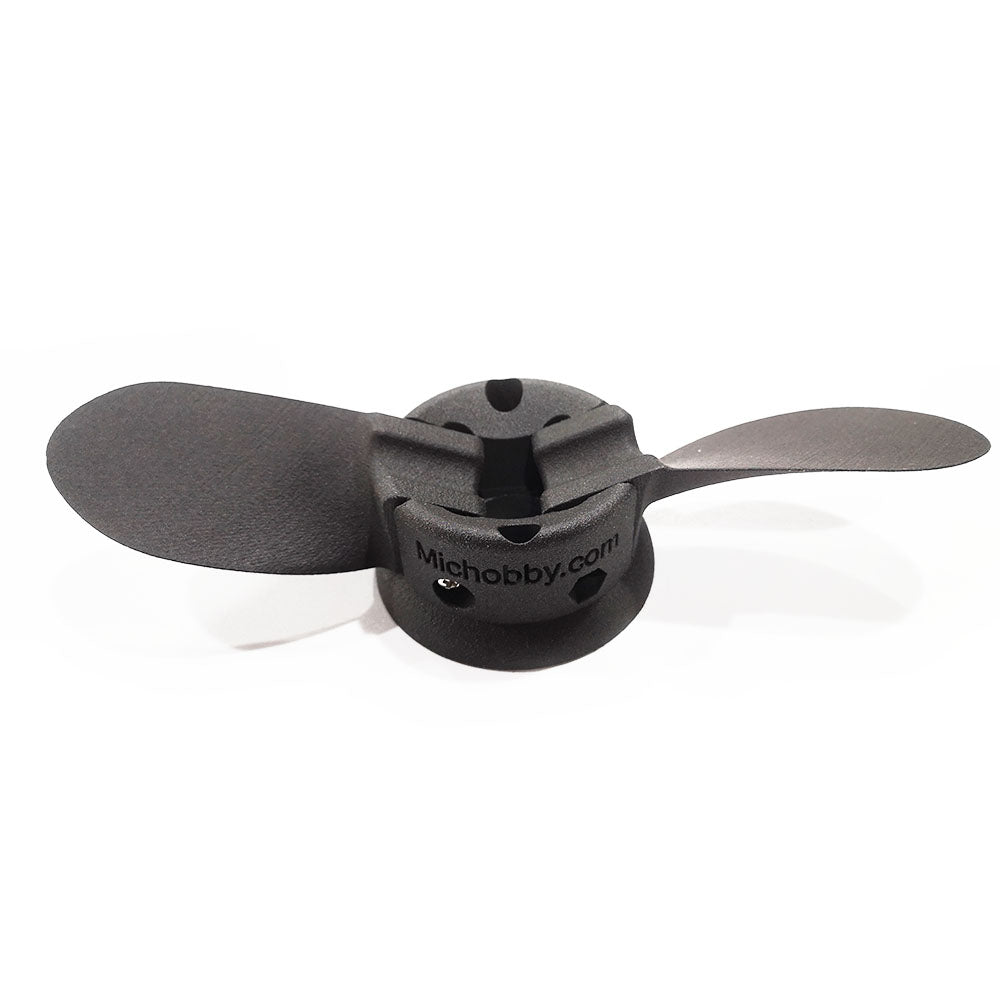

  • IV. RCLEAD Folding Propeller

Material: Nylon Powder
Blade: 2 folding Blades
Color: Black
Mounting Holes: 8xM4
Size: 2.7inch from tip to installation
Max Rotation Diameter: 190mm/7.5'' (Approx.)
Height: 32mm/1.25'' (Approx.)
